Technical Blog Article — App 08: Timeline of Events with React, TypeScript, Vite, and Fluent UI

App 08 — Timeline of Events — continues the first learning block of the React + Fluent UI roadmap. This app still belongs to the “Fundamentals and UI” stage, meaning the focus is not interactivity yet, but instead understanding how React renders structured UI from data using reusable components and declarative rendering patterns.

The main React concepts introduced in this app are:

• sequential rendering
• map() rendering
• reusable components
• typed data structures
• composition
• component hierarchy
• pure components
• layout composition
• Fluent UI enterprise cards
• status visualization

This application intentionally avoids:

• useState
• useEffect
• API calls
• reducers
• forms

because the current roadmap stage is still focused on learning the React rendering model before introducing interactivity.

According to the official React philosophy:

Components should remain pure whenever possible.

This app is strongly connected to:

• Keeping Components Pure
• Rendering Lists
• Describing the UI

1. The Goal of App 08

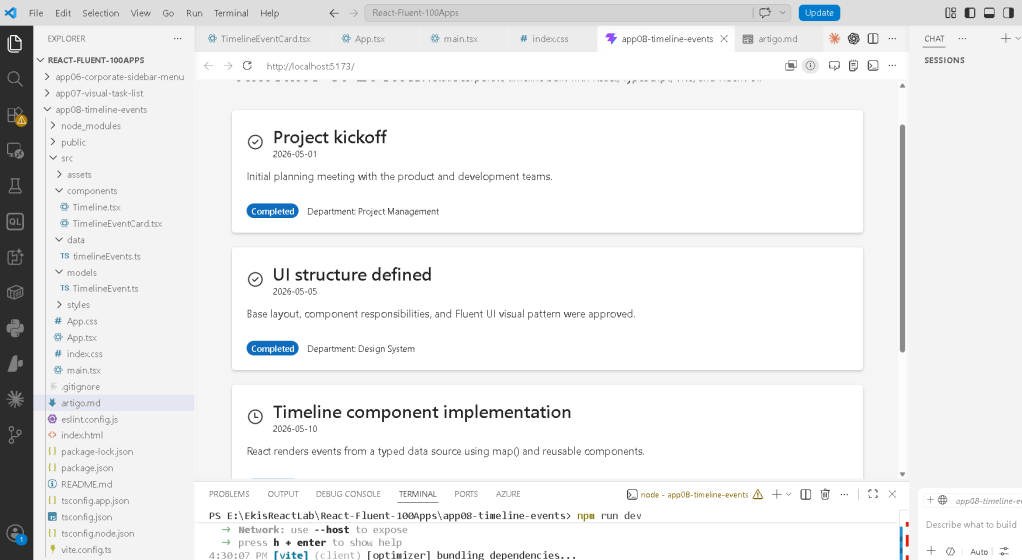

The objective is to build a Microsoft-style enterprise timeline interface where events are rendered from a typed data source.

Visually, the application shows:

• event title
• event date
• department
• status
• description
• visual status icon
• status badge

Architecturally, the real goal is to teach:

data → React components → JSX → browser UI

This mental model is extremely important.

React applications should derive UI from data rather than manually manipulating HTML elements.

2. Creating the Project

The project starts with Vite.

PowerShell Commands

cd C:\ReactApps
mkdir bloco01
cd bloco01
npm create vite@latest app08-timeline-events -- --template react-ts
cd app08-timeline-events
npm install
npm install @fluentui/react-components @fluentui/react-icons

This creates a modern React + TypeScript project.

3. Why We Use Vite

Vite is the modern React development environment used throughout the roadmap.

Vite provides:

• fast startup
• ES Modules
• instant refresh
• optimized builds
• simplified configuration

Historically, React tutorials often used Create React App.

Modern React projects increasingly prefer Vite because it is significantly faster and more modern internally.

4. Creating the Folder Structure

PowerShell

mkdir src\components
mkdir src\data
mkdir src\models
mkdir src\styles

This architecture is important because React projects scale through organization.

5. Why Folder Structure Matters

Each folder has a responsibility.

This separation prevents large unmaintainable files later.

6. Creating the Files

PowerShell

New-Item src\models\TimelineEvent.ts -ItemType File
New-Item src\data\timelineEvents.ts -ItemType File
New-Item src\components\TimelineEventCard.tsx -ItemType File
New-Item src\components\Timeline.tsx -ItemType File

7. Understanding the Data Model

src/models/TimelineEvent.ts

export type TimelineStatus =
  | "Completed"
  | "In Progress"
  | "Planned";
export interface TimelineEvent {
  id: number;
  date: string;
  title: string;
  description: string;
  department: string;
  status: TimelineStatus;
}

This file defines the shape of the data.

8. Why TypeScript Models Matter

Without TypeScript, data structures become harder to trust.

With TypeScript:

• autocomplete improves
• refactoring becomes safer
• mistakes are caught early
• architecture becomes clearer

For example:

status: TimelineStatus;

means the status can only be:

• "Completed"
• "In Progress"
• "Planned"

If you accidentally write:

status: "DONE"

TypeScript will immediately warn you.

This is one of the reasons TypeScript is essential in enterprise React projects.

9. The Data Source

src/data/timelineEvents.ts

import type { TimelineEvent }
from "../models/TimelineEvent";

This imports the interface only as a type.

The keyword:

import type

helps TypeScript optimize compilation because the import exists only for typing purposes.

10. Understanding the Timeline Array

export const timelineEvents: TimelineEvent[] = [

This creates an array of timeline objects.

Each object becomes one timeline card rendered by React.

Conceptually:

timelineEvents[0]
  → first card
timelineEvents[1]
  → second card
timelineEvents[2]
  → third card

This is one of the most important React ideas:

UI should derive from data.

11. Why the UI Is Static

This app intentionally contains no state.

There is:

• no useState
• no useEffect
• no events

The purpose is to focus exclusively on rendering.

This aligns with:

• Keeping Components Pure

Pure components are easier to understand and reason about.

12. Understanding TimelineEventCard.tsx

This is the main reusable component.

interface TimelineEventCardProps {
  event: TimelineEvent;
}

This defines the props received by the component.

Props are inputs for React components.

Conceptually:

TimelineEventCard receives data
and returns JSX.

13. Components Are Functions

export function TimelineEventCard({
  event,
}: TimelineEventCardProps)

React components are simply functions.

They:

1. receive props
2. return JSX

This is a core React principle.

14. Understanding JSX

The component returns JSX:

return (
  <Card>

JSX is not HTML.

JSX is:

• JavaScript syntax
• declarative UI syntax
• converted into JavaScript internally

React later converts this into real browser DOM nodes.

15. Fluent UI Card Component

<Card>

The Fluent UI Card is the visual container.

It provides:

• spacing
• padding
• border behavior
• enterprise styling
• Microsoft design language

Without Fluent UI, you would manually build all this with CSS.

16. Understanding CardHeader

<CardHeader

This component organizes:

• icon
• title
• subtitle

The structure becomes:

[icon] title
       date

This matches common Microsoft-style UI layouts.

17. Dynamic Status Icons

The app dynamically changes the icon depending on the event status.

function getStatusIcon(
  status: TimelineEvent["status"]
)

This function returns different Fluent UI icons.

18. Why This Function Matters

This introduces conditional rendering logic.

Conceptually:

Completed
  → checkmark icon
In Progress
  → clock icon
Planned
  → calendar icon

The component output changes based on data.

This is declarative UI.

19. Badge Appearance Logic

Another function:

function getBadgeAppearance(...)

changes the Fluent UI badge style.

Completed
  → filled
In Progress
  → tint
Planned
  → outline

This makes the UI visually communicate status differences.

20. Why Declarative UI Matters

Traditional imperative UI programming might say:

if status changes:
  manually update colors
  manually replace icon

React instead says:

describe the UI for each state

React handles the DOM updates automatically.

This is one of the biggest conceptual shifts in frontend development.

21. Understanding the Layout Styles

The card uses inline styles:

style={{
  width: "100%",
  padding: "20px",
}}

This keeps the styling visible beside the JSX while learning.

Later apps may migrate more styling into CSS modules or centralized styles.

22. Understanding the Flex Layout

Inside the card:

display: "flex",
gap: "12px",
alignItems: "center",
flexWrap: "wrap",

This creates a horizontal metadata area.

Conceptually:

[Badge] [Department]

23. Understanding Timeline.tsx

This component renders the full timeline.

import { timelineEvents }
from "../data/timelineEvents";

The component imports the data source.

24. The Importance of map()

timelineEvents.map((event) => (
  <TimelineEventCard
    key={event.id}
    event={event}
  />
))

This is one of the most important React patterns.

map() transforms:

TimelineEvent[]

into:

TimelineEventCard[]

25. Why key={event.id} Matters

React requires stable keys for lists.

key={event.id}

helps React:

• track elements
• optimize rendering
• identify changes

Without keys, React warns because it cannot reliably track list items.

26. Understanding Component Composition

The hierarchy becomes:

App
  → Timeline
      → TimelineEventCard

This is component composition.

Each component has one responsibility.

27. Understanding App.tsx

The root application component:

function App()

renders:

<Title1>Timeline of Events</Title1>
<Text>
  A static corporate timeline...
</Text>
<Timeline />

The app composes smaller components together.

28. Why main Is Used

<main>

The main HTML element is semantic.

It tells browsers and assistive technologies:

This is the main page content.

React still benefits from good HTML semantics.

29. Understanding the Container Layout

maxWidth: "900px",
margin: "0 auto",

This centers the content horizontally.

0 auto is classic CSS centering behavior.

30. Understanding main.tsx

src/main.tsx

ReactDOM.createRoot(
  document.getElementById("root")!
)

This connects React to the HTML page.

31. How React Enters the Browser

The flow is:

index.html
  contains div#root
main.tsx
  finds div#root
ReactDOM.createRoot()
  initializes React
<App />
  becomes the component tree
ReactDOM
  updates the browser DOM

This is one of the most important concepts in React.

32. Why FluentProvider Exists

<FluentProvider theme={webLightTheme}>

This activates the Microsoft Fluent UI design system globally.

Without it:

• components lose theme styling
• typography becomes inconsistent
• visual tokens disappear

33. Why We Use webLightTheme

webLightTheme

This is Fluent UI’s default Microsoft enterprise light theme.

Later apps may introduce:

• dark mode
• runtime theme switching
• custom enterprise themes

34. Understanding index.css

body {
  margin: 0;
}

Browsers apply default margin automatically.

Removing it prevents unwanted whitespace around the application.

35. Why This App Is Architecturally Important

Even though the app appears visually simple, it introduces major React concepts:

36. What We Intentionally Avoided

This app intentionally avoids:

• useEffect
• useState
• APIs
• reducers

because the current learning stage focuses on rendering architecture first.

This is important.

Many beginner tutorials prematurely introduce effects and state before the rendering model is understood.

37. Relationship to the React Learn Roadmap

This app aligns directly with:

38. Technical Summary

39. Official Documentation

React

• React Learn
• Rendering Lists
• Keeping Components Pure
• Describing the UI

Fluent UI

• Fluent UI React Components

Vite

• Vite Guide

TypeScript

• TypeScript Docs
