Technical Blog Article — App 31: Grade Simulator with React, TypeScript, Fluent UI, and Derived State

Modern React applications are not built by manually manipulating the DOM or writing imperative UI logic. Instead, React applications are built by describing how the interface should look based on the current state of the application. One of the most important concepts in modern React is understanding the difference between:

• real state
• derived state
• controlled inputs
• validation logic
• rendering logic

App 31 — Grade Simulator is one of the most important applications in Block 2 because it introduces the idea that React components should calculate UI from state instead of storing redundant information.

This application simulates a school grading system where the user enters:

• first exam grade
• second exam grade
• project grade
• attendance score

React then calculates:

• weighted average
• final status
• validation messages

This app belongs to Block 2 — Interactivity and State, whose goal is to teach:

• useState
• controlled forms
• events
• validation
• derived state
• conditional rendering
• state structure

The roadmap defines this block as the transition from static UI into dynamic, interactive applications.

Why This App Is Architecturally Important

At first glance, the app seems simple.

However, this application introduces one of the most important mental shifts in React:

Do not store values that can be calculated.

This principle comes directly from the official React Learn documentation:

“Avoid redundant state.”

The app stores only the raw user inputs.

Everything else is calculated dynamically:

• average
• approval status
• validation state

This is called derived state.

The Development Environment

The project uses:

• React
• TypeScript
• Vite
• Fluent UI
• VS Code
• Node.js

The app was created using Vite because Vite provides:

• fast development server
• Hot Module Replacement
• native ES Modules
• optimized builds
• excellent React support

Project creation:

mkdir bloco02
cd bloco02
npm create vite@latest app31-grade-simulator -- --template react-ts
cd app31-grade-simulator
npm install

Install Fluent UI:

npm install @fluentui/react-components
npm install @fluentui/react-icons

Create the architecture folders:

mkdir src\components
mkdir src\models
mkdir src\styles

Create the files:

New-Item src\models\GradeForm.ts -ItemType File
New-Item src\components\GradeSimulator.tsx -ItemType File
New-Item src\components\GradeResultCard.tsx -ItemType File

Final Folder Structure

src/
  components/
    GradeSimulator.tsx
    GradeResultCard.tsx
  models/
    GradeForm.ts
  styles/
  App.tsx
  main.tsx
  index.css

This architecture already follows enterprise React organization:

Understanding the TypeScript Model

File:

src/models/GradeForm.ts

Code:

export interface GradeForm {
  firstExam: string;
  secondExam: string;
  project: string;
  attendance: string;
}

This interface defines the structure of the form state.

The important detail is:

string

instead of:

number

Why?

Because HTML input fields always return strings.

Even when:

type="number"

the browser still provides the value as text.

This is an extremely important React concept.

Why Controlled Inputs Matter

The app uses controlled inputs.

A controlled input means:

React controls the input value.

Instead of the browser independently managing the input state, React becomes the source of truth.

Example:

<Input
  value={form.firstExam}
  onChange={(_, data) =>
    updateField("firstExam", data.value)
  }
/>

Two things happen here:

1. React sends the value to the input

value={form.firstExam}

2. React receives updates from the input

onChange={(_, data) =>
  updateField("firstExam", data.value)
}

This creates a full React-controlled data flow.

Understanding useState

The app stores form data using:

const [form, setForm] =
  useState<GradeForm>(initialForm);

This is one of the most important constructions in React.

The syntax:

const [state, setState]

means:

The generic type:

<GradeForm>

tells TypeScript:

This state follows the GradeForm interface.

This gives:

• autocomplete
• type safety
• validation
• safer refactoring

Understanding the Initial State

const initialForm: GradeForm = {
  firstExam: "",
  secondExam: "",
  project: "",
  attendance: "",
};

This defines the initial component state.

When React renders for the first time:

form =
{
  firstExam: "",
  secondExam: "",
  project: "",
  attendance: ""
}

The UI is generated from this object.

Understanding State Updates

The app updates state using:

function updateField(
  field: keyof GradeForm,
  value: string
) {
  setForm({
    ...form,
    [field]: value,
  });
}

This is one of the most important React patterns.

Understanding the Spread Operator

...form

copies all existing properties.

Example:

form =
{
  firstExam: "8",
  secondExam: "7",
  project: "9",
  attendance: ""
}

If the user updates attendance:

updateField("attendance", "10")

React creates:

{
  firstExam: "8",
  secondExam: "7",
  project: "9",
  attendance: "10"
}

Instead of mutating the old object directly.

This is critical because React state must be treated as immutable.

Why React State Must Be Immutable

Wrong approach:

form.firstExam = "10";

Correct approach:

setForm({
  ...form,
  firstExam: "10",
});

React expects state updates to create new objects.

This allows React to detect changes efficiently.

Understanding Derived State

The app calculates:

const average =
  firstExam * 0.35 +
  secondExam * 0.35 +
  project * 0.2 +
  attendance * 0.1;

Notice:

average is NOT stored in state.

This is extremely important.

The app could incorrectly do:

const [average, setAverage] = useState(0);

But this would create duplicated state.

Instead, React Learn recommends calculating values during rendering whenever possible.

Why Derived State Is Better

Derived state avoids synchronization bugs.

Imagine storing:

• grades
• average

separately.

If one changes but the other is not updated correctly, the UI becomes inconsistent.

By calculating average directly from the grades:

grades become the single source of truth

This is one of the core principles of React architecture.

Understanding Validation Logic

The app validates grades using:

const hasInvalidGrade =
  firstExam > 10 ||
  secondExam > 10 ||
  project > 10 ||
  attendance > 10 ||
  firstExam < 0 ||
  secondExam < 0 ||
  project < 0 ||
  attendance < 0;

This variable is also derived state.

Again:

No need for useState.

The validation is calculated from existing values.

Understanding Conditional Rendering

The app uses:

{hasInvalidGrade ? (
  <Card>
    <Text>
      Grades must be between 0 and 10.
    </Text>
  </Card>
) : (
  <GradeResultCard
    average={average}
    status={status}
  />
)}

This is React conditional rendering.

The UI changes based on data.

React is not manually hiding or showing elements.

Instead:

Different JSX is returned depending on state.

This is declarative UI programming.

Understanding the Approval Status Logic

The app calculates:

const status =
  average >= 7
    ? "Approved"
    : average >= 5
    ? "Recovery"
    : "Failed";

This uses nested ternary operators.

Equivalent logic:

If average >= 7
  Approved
Else if average >= 5
  Recovery
Else
  Failed

This is another example of derived state.

Understanding Component Composition

The component hierarchy is:

App
  GradeSimulator
    GradeResultCard

Each component has a single responsibility.

This is React composition.

Understanding Props

The result card receives:

<GradeResultCard
  average={average}
  status={status}
/>

These are props.

Props are component inputs.

The child component receives data from the parent.

Understanding the Result Card

File:

GradeResultCard.tsx

This component is purely presentational.

It does not contain:

• state
• effects
• calculations

It simply receives data and renders UI.

This is a pure component.

Why Pure Components Matter

Pure components are:

• easier to test
• easier to reuse
• easier to understand
• more predictable

React Learn strongly emphasizes component purity.

Understanding Fluent UI Components

The app uses:

• Card
• Input
• Field
• Button
• Badge
• Text
• Title1
• Title2

Fluent UI provides:

• Microsoft design system
• accessibility
• consistent spacing
• keyboard navigation
• enterprise typography
• visual consistency

Understanding the Field Component

Example:

<Field label="First Exam - 35%">

This wraps the input with:

• label
• spacing
• accessibility association

Without Fluent UI, you would manually create:

<label>
<input>

Fluent UI abstracts this professionally.

Understanding the Badge

The result status uses:

<Badge appearance={badgeAppearance}>

The appearance changes dynamically.

This is UI derived from state.

React calculates:

Approved -> filled
Recovery -> tint
Failed -> outline

Then renders the correct UI automatically.

Understanding the Reset Button

function resetForm() {
  setForm(initialForm);
}

This restores the original state.

Since the UI derives from state:

• inputs reset
• average resets
• status resets
• validation resets

automatically.

This demonstrates one of React’s greatest strengths:

Update state once.
React updates the UI automatically.

Why No useEffect Exists Here

This is extremely important.

The app intentionally does NOT use:

useEffect()

Why?

Because:

• calculations happen during rendering
• no external system exists
• no API exists
• no timer exists
• no DOM synchronization exists

According to React Learn:

“You Might Not Need an Effect.”

This app is a perfect example.

A beginner mistake would be:

useEffect(() => {
  calculateAverage();
}, [form]);

This is unnecessary.

The average can simply be calculated directly.

React Mental Model Introduced

This app reinforces the correct React mental model:

State changes
  ->
React re-renders
  ->
Derived values recalculate
  ->
UI updates automatically

You do not manually update the DOM.

You describe the UI from data.

Understanding the Rendering Flow

The rendering flow becomes:

User types into Input
  ->
onChange fires
  ->
setForm updates state
  ->
React re-renders component
  ->
average recalculates
  ->
status recalculates
  ->
validation recalculates
  ->
UI updates automatically

This is one of the most important flows in React.

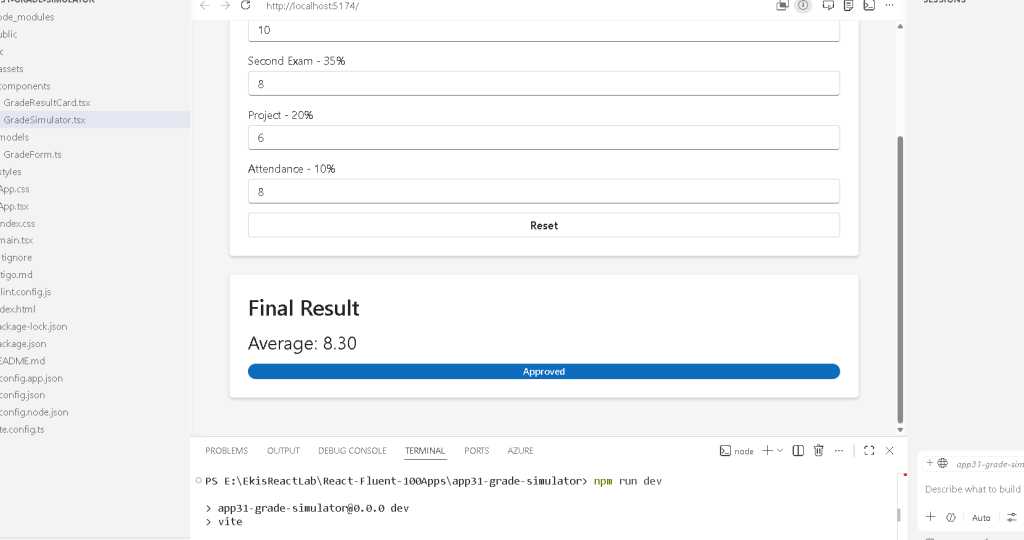

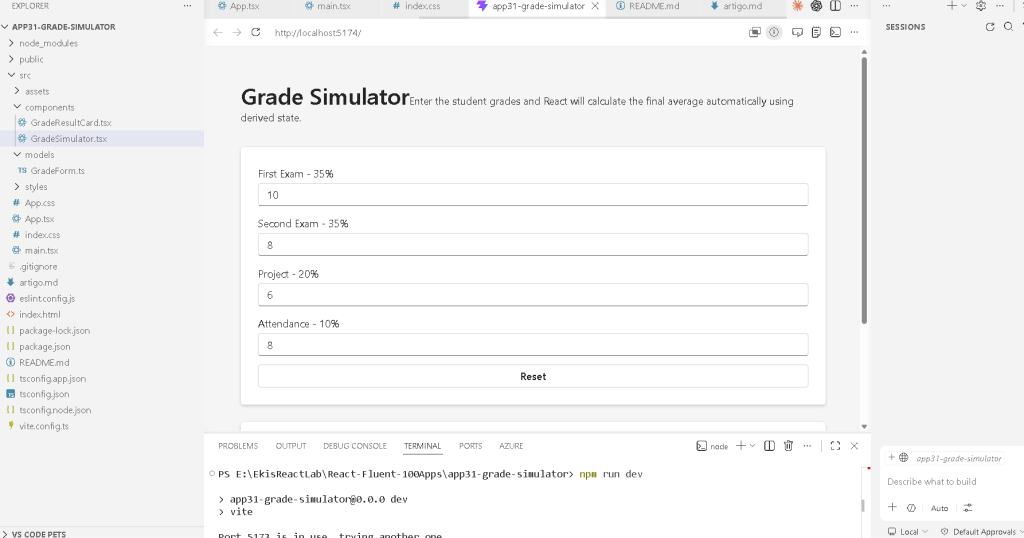

Production Validation

Run development server:

npm run dev

Validate production build:

npm run build

Preview production build:

npm run preview

The build command validates:

• TypeScript
• JSX
• imports
• bundling
• production compilation

This is equivalent to validating whether the app is production-ready.

Technical Summary

Official Documentation

React

• React Learn
• State: A Component’s Memory
• Choosing the State Structure
• Reacting to Input with State
• Conditional Rendering
• Updating Objects in State
• You Might Not Need an Effect

Fluent UI

• Fluent UI React Components

Vite

• Vite Guide

TypeScript

• TypeScript Documentation

Current Project Progress
