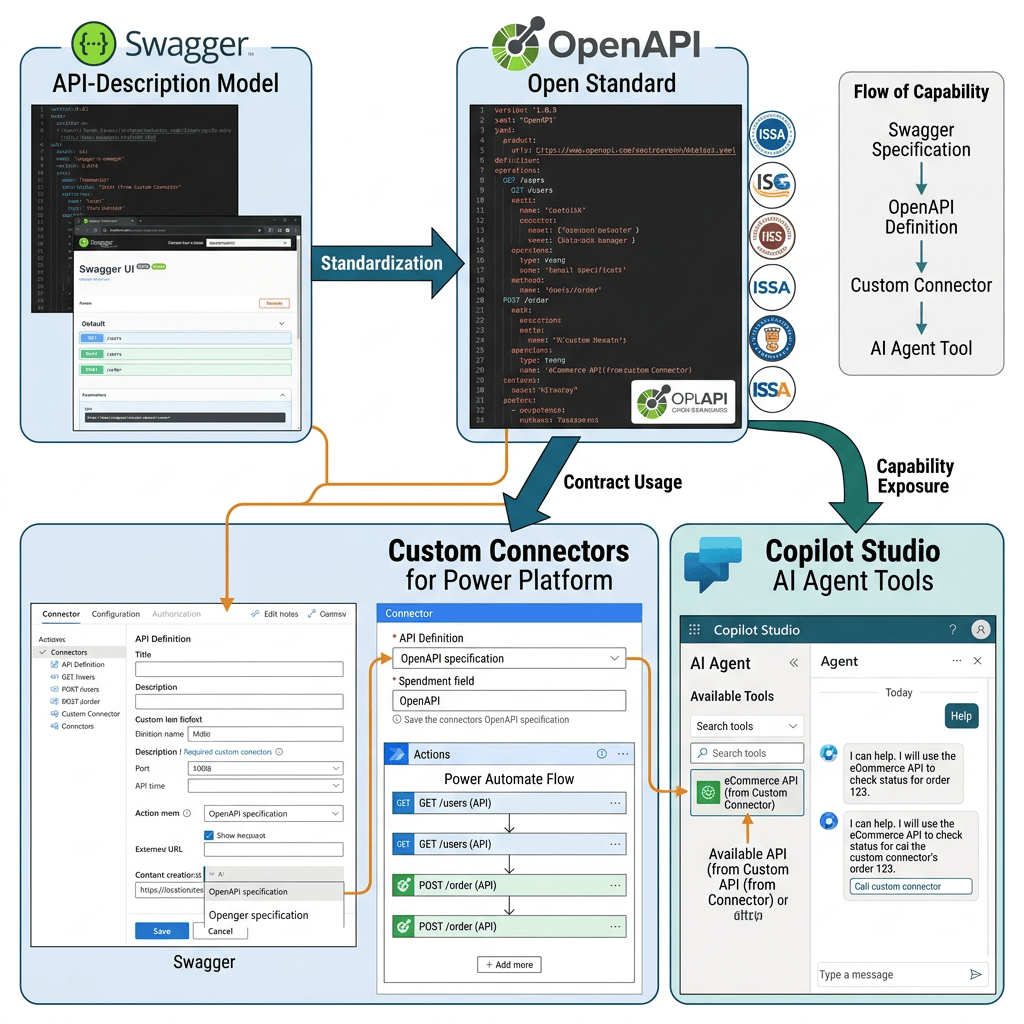

Swagger started the API-description model; OpenAPI became the open standard; Custom Connectors use that contract to expose REST API operations to Power Platform, and Copilot Studio can ultimately make those capabilities available to an Agent as Tools.

Swagger and OpenAPI: Origins, Evolution, and Their Role in Modern API Integration

Introduction

When working with REST APIs, Power Platform Custom Connectors, Power Automate, and Microsoft Copilot Studio, two terms appear frequently: Swagger and OpenAPI.

They are closely related, but they are not exactly the same thing.

The simplest way to understand the relationship is:

Swagger was the original specification. OpenAPI is the standardized evolution of that specification. Swagger remains the name of a popular ecosystem of tools built around OpenAPI.

This distinction becomes particularly important when working with Microsoft Power Platform because Custom Connectors rely on an API description to understand which operations an external API exposes, which parameters those operations require, how authentication works, and what data can be returned.

Microsoft describes a Custom Connector as a wrapper around an API and states that, behind the scenes, Power Apps, Power Automate, Logic Apps, and Copilot Studio use OpenAPI to define connectors. (Microsoft Learn)

1. The Problem Before Swagger

REST APIs are fundamentally based on HTTP.

For example, our football API might expose an operation such as:

GET https://api.football-data.org/v4/competitions/PL/standings

A human developer can read API documentation and determine that:

Host:
api.football-data.org
Base Path:
/v4
Resource:
/competitions/{code}/standings
HTTP Method:
GET
Parameter:
code
Authentication:
API Key
Response:
JSON

However, traditional documentation is primarily designed for humans.

Software needs something more structured.

Ideally, we want a machine-readable description similar to:

API
│
├── Information
├── Server
├── Authentication
├── Paths
│   └── Operations
├── Parameters
├── Request
├── Responses
└── Schemas

This is the problem that Swagger was created to address.

2. The Origin of Swagger

Swagger began in 2010 as an open-source specification for designing and describing RESTful APIs. An ecosystem of tools subsequently appeared around the specification, including Swagger UI, Swagger Editor, and Swagger Codegen. (Swagger)

The fundamental idea was simple but extremely powerful:

REST API
    │
    ▼
Machine-readable API description
    │
    ▼
Swagger Specification
    │
    ├── Documentation
    ├── Testing
    ├── Client generation
    └── Development tools

Instead of documenting an API only with prose, developers could describe its interface using a structured document.

For example:

paths:
  /competitions/{code}/standings:
    get:
      parameters:
        - name: code
          in: path
          required: true
          type: string

A program can parse this structure and determine that:

• an endpoint exists;
• it supports GET;
• it expects a parameter named code;
• the parameter appears in the URL path;
• the parameter is required;
• its type is string.

Swagger therefore transformed API documentation into something that both humans and software could understand.

3. Swagger Was More Than Documentation

This is an important conceptual distinction.

Traditional documentation might say:

To retrieve competition standings, call:
GET /competitions/{code}/standings
The code parameter identifies the competition.

A developer can understand this.

But a Swagger/OpenAPI document represents the same information structurally:

paths:
  /competitions/{code}/standings:
    get:
      operationId: GetCompetitionStandings
      parameters:
        - name: code
          in: path
          required: true
          type: string

Now software can understand it as well.

The architectural change is therefore:

Traditional API Documentation
API
 ↓
Documentation
 ↓
Human Developer

versus:

OpenAPI Description
API
 ↓
Structured Contract
 ↓
Human + Software

This concept of a machine-readable API contract is one of the most important ideas behind OpenAPI.

4. Swagger Specification vs. Swagger Tools

The word Swagger eventually became overloaded because it referred both to the specification and to tools surrounding that specification.

For example:

Swagger
│
├── Swagger Specification
├── Swagger UI
├── Swagger Editor
└── Swagger Codegen

These are not the same thing.

Swagger Specification was the API description format.

Swagger UI renders API definitions as interactive documentation.

Swagger Editor provides an environment for authoring and validating API descriptions.

Swagger Codegen uses API descriptions to generate client/server-related code.

This distinction became even more important after the specification itself was renamed OpenAPI.

5. The Major Transition: Swagger Becomes OpenAPI

The critical historical transition occurred in 2015.

The Swagger Specification was donated to the Linux Foundation, and the OpenAPI Initiative (OAI) was established to continue developing an open, vendor-neutral specification for RESTful API metadata. Microsoft was among the founding members of the OpenAPI Initiative. (OpenAPI Initiative)

The historical relationship can therefore be visualized as:

Swagger Specification
        │
        ▼
Swagger 2.0
        │
        │ 2015
        ▼
OpenAPI Initiative
        │
        ▼
OpenAPI Specification
        │
        ├── OpenAPI 2.0
        ├── OpenAPI 3.x
        └── continuing evolution

This is why modern documentation frequently uses expressions such as:

OpenAPI (formerly Swagger)

Microsoft uses this terminology extensively in its Custom Connector documentation. (Microsoft Learn)

6. Did Swagger Disappear?

No.

The specification became the OpenAPI Specification, but Swagger continued as a family of tools for working with OpenAPI.

Therefore, today we should distinguish between:

OpenAPI
    =
Specification / Standard
Swagger
    =
Tooling ecosystem around OpenAPI

This is slightly simplified, but it is a very useful modern mental model.

For example, Swagger UI still exists and can render an OpenAPI description.

Likewise, Swagger Editor can be used to edit API descriptions.

This explains why developers still constantly encounter the word “Swagger” even though the specification itself is now called OpenAPI.

7. What Exactly Is OpenAPI?

OpenAPI is a specification for describing HTTP APIs in a standardized, machine-readable form.

An OpenAPI description can communicate information such as:

API
│
├── Metadata
│   ├── Title
│   ├── Description
│   └── Version
│
├── Host / Servers
│
├── Paths
│
├── Operations
│   ├── GET
│   ├── POST
│   ├── PUT
│   └── DELETE
│
├── Parameters
│
├── Request Bodies
│
├── Responses
│
├── Data Schemas
│
└── Security

The crucial concept is:

OpenAPI describes the interface contract of an API.

It does not implement the API.

8. API Implementation vs. OpenAPI Description

Suppose football-data.org implements:

GET /v4/competitions/PL/standings

That endpoint exists on the actual web server.

Our OpenAPI file might contain:

paths:
  /competitions/{code}/standings:
    get:

That definition does not create the endpoint.

It only describes it.

Conceptually:

API Implementation
        │
        │ described by
        ▼
OpenAPI Description

For a developer familiar with C# or TypeScript, it is useful to think of OpenAPI as a form of external interface contract.

The analogy is not exact, but conceptually:

Implementation
      ↕
Contract

is similar to:

REST API
      ↕
OpenAPI Description

9. OpenAPI Is Not YAML

Another common misunderstanding is saying:

“OpenAPI is a YAML file.”

Not exactly.

OpenAPI is a specification.

YAML and JSON are formats that can be used to represent an OpenAPI description.

Conceptually:

OpenAPI Specification
        │
        ▼
API Description
        │
     ┌──┴──┐
     ▼     ▼
   YAML   JSON

For example:

info:
  title: Football Data API
  version: '1.0'

is YAML representing part of an OpenAPI description.

The same information can also be represented in JSON.

10. Understanding Our Football Data API Definition

Now we can apply the theory directly to our Football Data API Custom Connector.

Our definition starts with:

swagger: '2.0'

This declares that the document follows the Swagger/OpenAPI 2.0 format.

Then we have:

host: api.football-data.org
basePath: /v4
schemes:
  - https

Together, these elements describe where the API is located:

https
   +
api.football-data.org
   +
/v4

Result:

https://api.football-data.org/v4

Then we describe a resource:

paths:
  /competitions/{code}/standings:

And an HTTP operation:

get:

The logical name of the operation is:

operationId: GetCompetitionStandings

The operation expects an input:

parameters:
  - name: code
    in: path
    required: true
    type: string

Therefore:

code = PL

produces:

/competitions/PL/standings

The API contract can also describe possible responses:

responses:
  '200':
    description: Competition standings returned successfully
  '400':
    description: Invalid request
  '403':
    description: Authentication or subscription restriction
  '404':
    description: Competition not found
  '429':
    description: API request limit exceeded

The OpenAPI document is therefore describing the conversation that a client can have with the REST API.

11. OpenAPI and Microsoft Power Platform

This becomes especially important in Power Platform.

Microsoft describes a Custom Connector as a wrapper around a REST API. Custom Connectors allow services such as Power Apps, Power Automate, Logic Apps, and Copilot Studio to communicate with APIs that aren’t available through prebuilt connectors. (Microsoft Learn)

The architecture becomes:

External REST API
        │
        ▼
OpenAPI Description
        │
        ▼
Custom Connector
        │
        ├── Power Apps
        ├── Power Automate
        ├── Logic Apps
        └── Copilot Studio

Microsoft also explicitly states that behind the scenes these products use OpenAPI to define connectors. (Microsoft Learn)

This explains why learning OpenAPI is relevant even though our ultimate objective is building Agents.

12. Why Power Apps Shows a “Swagger Editor”

This is exactly what we encountered in our Football Data API experiment.

The Power Apps Custom Connector interface contains a:

Swagger editor

and our document contains:

swagger: '2.0'

At the same time, Microsoft documentation talks about:

OpenAPI Definition

These are not three unrelated technologies.

They are different parts of the same historical evolution.

Microsoft currently documents this Custom Connector scenario as requiring an OpenAPI 2.0 definition, formerly known as Swagger. The documentation also states that OpenAPI 3.0 definitions aren’t supported by this Custom Connector import flow. (Microsoft Learn)

Therefore:

Swagger Editor
        │
        ▼
swagger: '2.0'
        │
        ▼
OpenAPI 2.0 Definition
        │
        ▼
Custom Connector

is perfectly consistent with the platform’s history.

13. OpenAPI and Custom Connector Operations

An important connection exists between an OpenAPI operation and what Power Platform exposes as an action.

Suppose our definition contains:

operationId: GetCompetitionStandings

Power Platform can interpret this operation and expose it through the connector.

Microsoft documentation explains that connector actions map to operations defined in Swagger/OpenAPI. (Microsoft Learn)

Therefore:

OpenAPI
operationId:
GetCompetitionStandings
        ↓
Custom Connector
Action:
GetCompetitionStandings

This is one of the bridges between a traditional REST API and low-code platforms.

14. From REST API to Copilot Studio Agent

Now the relationship becomes particularly interesting for our learning path.

Historically:

REST API
   ↓
Swagger
   ↓
OpenAPI
   ↓
Machine-readable API contract

Power Platform adds:

REST API
   ↓
OpenAPI
   ↓
Custom Connector
   ↓
Power Platform

Copilot Studio extends the architecture further:

User
  │
  ▼
Agent
  │
  ▼
Tool
  │
  ▼
Custom Connector
  │
  ▼
OpenAPI Operation
  │
  ▼
REST API

For our Football Agent:

User
 │
 │ "Show me the Premier League standings"
 ▼
Agent
 │
 │ Understands the request
 ▼
Tool
 │
 ▼
Custom Connector
 │
 │ GetCompetitionStandings
 │
 │ code = PL
 ▼
HTTP GET
 │
 ▼
football-data.org
 │
 ▼
JSON
 │
 ▼
Connector
 │
 ▼
Agent
 │
 ▼
User

This is why OpenAPI is much more than an old API documentation technology for our purposes.

It becomes part of the contract through which an Agent can access external capabilities.

15. Knowledge vs. OpenAPI/Tools

We should also maintain one of the most important distinctions in our Copilot Studio learning path.

A Knowledge Source provides information that can be retrieved and used to ground answers.

A Tool provides an operational capability.

Therefore:

SharePoint Documents
       ↓
Knowledge
       ↓
Retrieval
       ↓
Grounding
       ↓
Answer

is conceptually different from:

REST API
    ↓
OpenAPI
    ↓
Custom Connector
    ↓
Tool
    ↓
Agent

In our architecture, football-data.org is not simply a document repository used for Grounding. We are exposing API operations that the Agent can invoke.

16. The Bigger Architectural Picture

Our current experiment can now be represented as:

                    USER
                      │
                      ▼
              COPILOT STUDIO
                      │
                      ▼
                    AGENT
                      │
               Orchestration
                      │
                      ▼
                     TOOL
                      │
                      ▼
              CUSTOM CONNECTOR
                      │
             OpenAPI Contract
                      │
                      ▼
                HTTP / REST
                      │
                      ▼
             football-data.org
                      │
                      ▼
                JSON Response
                      │
                      ▼
              CUSTOM CONNECTOR
                      │
                      ▼
                    AGENT
                      │
                      ▼
                    USER

OpenAPI occupies a very specific position:

It formally describes how the external HTTP API can be consumed.

The Custom Connector then provides the Power Platform abstraction around that API.

The Agent can subsequently use the capability exposed through that integration.

Summary Table

Official Documentation and Reference Links

The key sentence to remember is:

Swagger started the API-description model; OpenAPI became the open standard; Custom Connectors use that contract to expose REST API operations to Power Platform, and Copilot Studio can ultimately make those capabilities available to an Agent as Tools.
